The top of element has cover for pulling out and is bucket shaped.
It has biggest filtration area so it doesn’t need cleaning inside often.
This type also can be installed at high-viscosity line and at the line
with plenty of foreign matters.

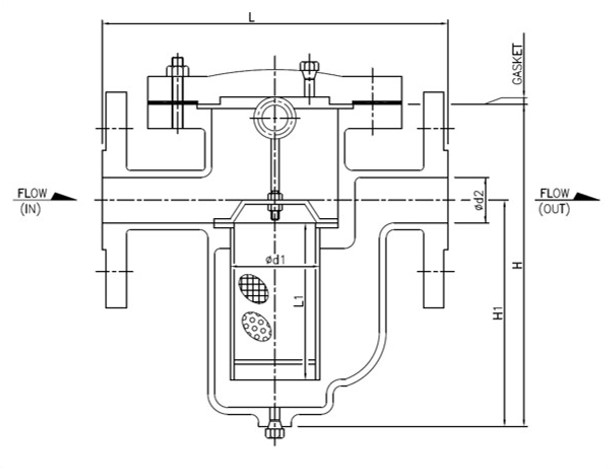

B-001 (B-Casting) Type Specification
Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS
Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,
Aluminum, Copper Alloy, Chrome Steel, etc.
End Connection : Flange Type
Butt Weld Type
Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#
Size Range : 1/2″ ∼ 24”
※ For dimension details, please contact MSNT.

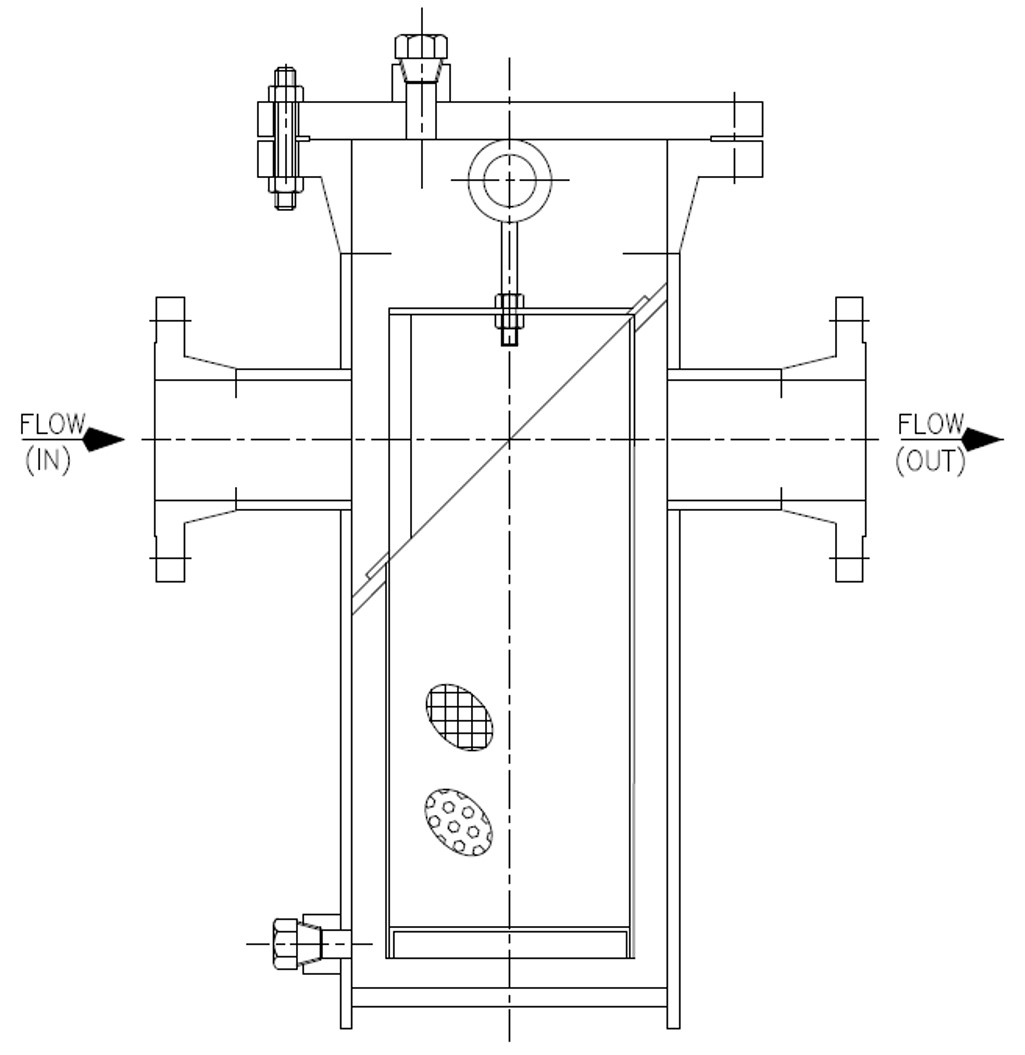

B-002 (B-Fabrication) Type Specification
Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS
Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,
Aluminum, Copper Alloy, Chrome Steel, etc.
End Connection : Flange Type
Butt Weld Type
Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#
Size Range : 1/2″ and above
※ For dimension details, please contact MSNT.

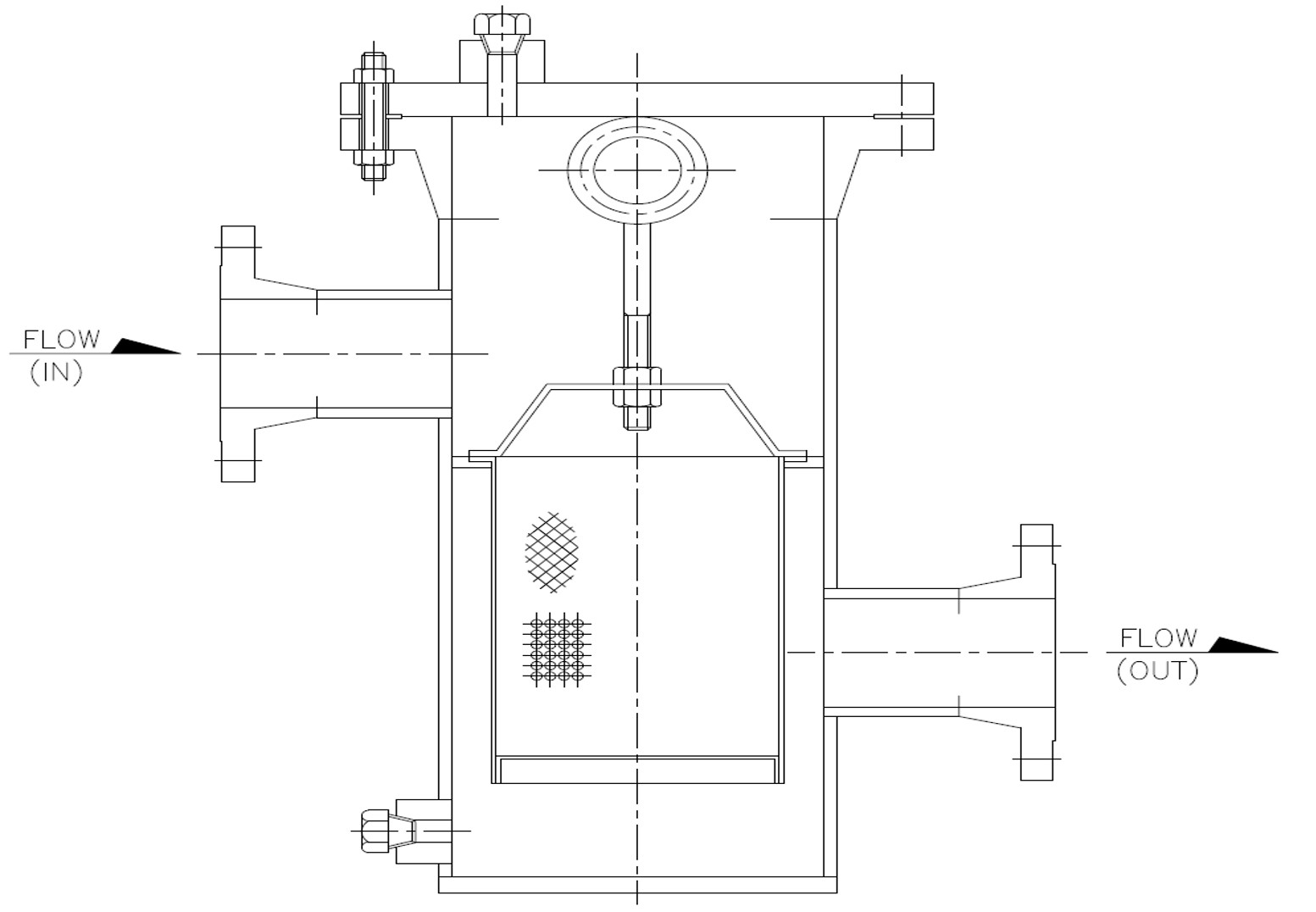

B-003 (B-Fabrication) Type Specification
Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS
Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,
Aluminum, Copper Alloy, Chrome Steel, etc.
End Connection : Flange Type
Butt Weld Type
Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#
Size Range : 1/2″ and above
※ For dimension details, please contact MSNT.
