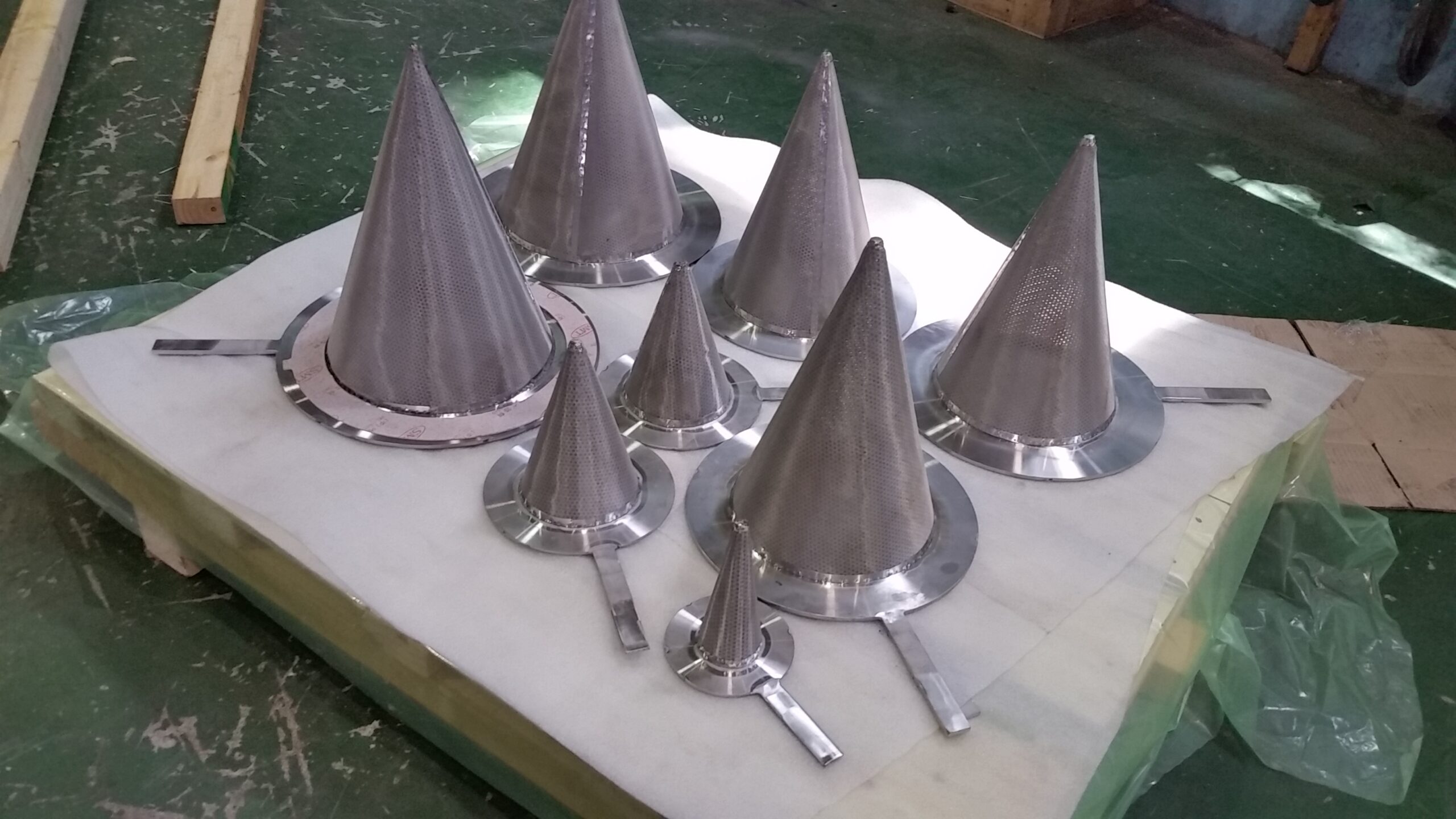

It is a makeshift strainer.

Even if a new factory has cleaned well, it is difficult to determine when and where foreign matter comes out.

For that case, additionally install this butterfly net shape cone type strainer.

It does not have a body and is put it between flanges to set up. Inspect and remove

it 6 to 12 months after installation.

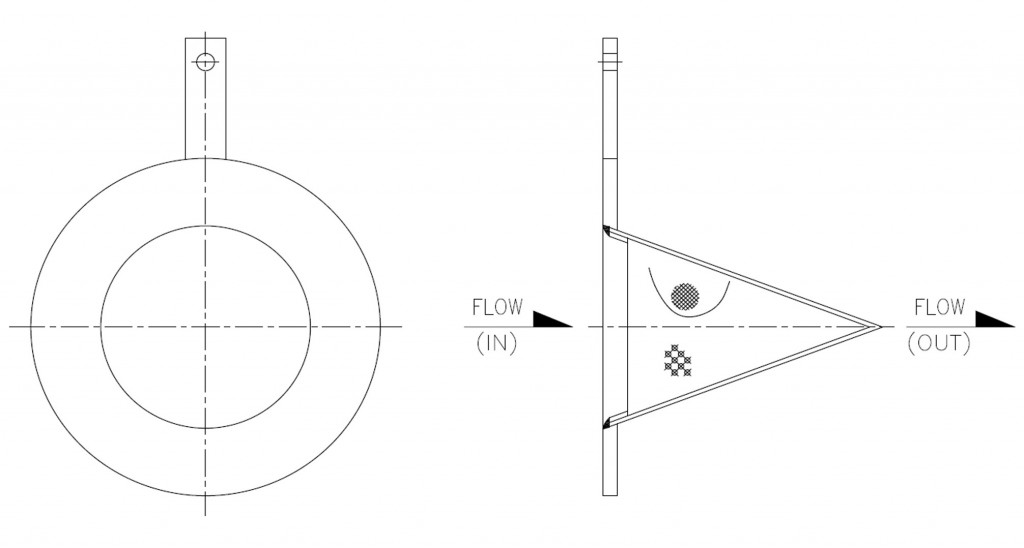

C001 Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500# Size



Range : 1/2” and above.

              ※ For dimension details, please contact MSNT.

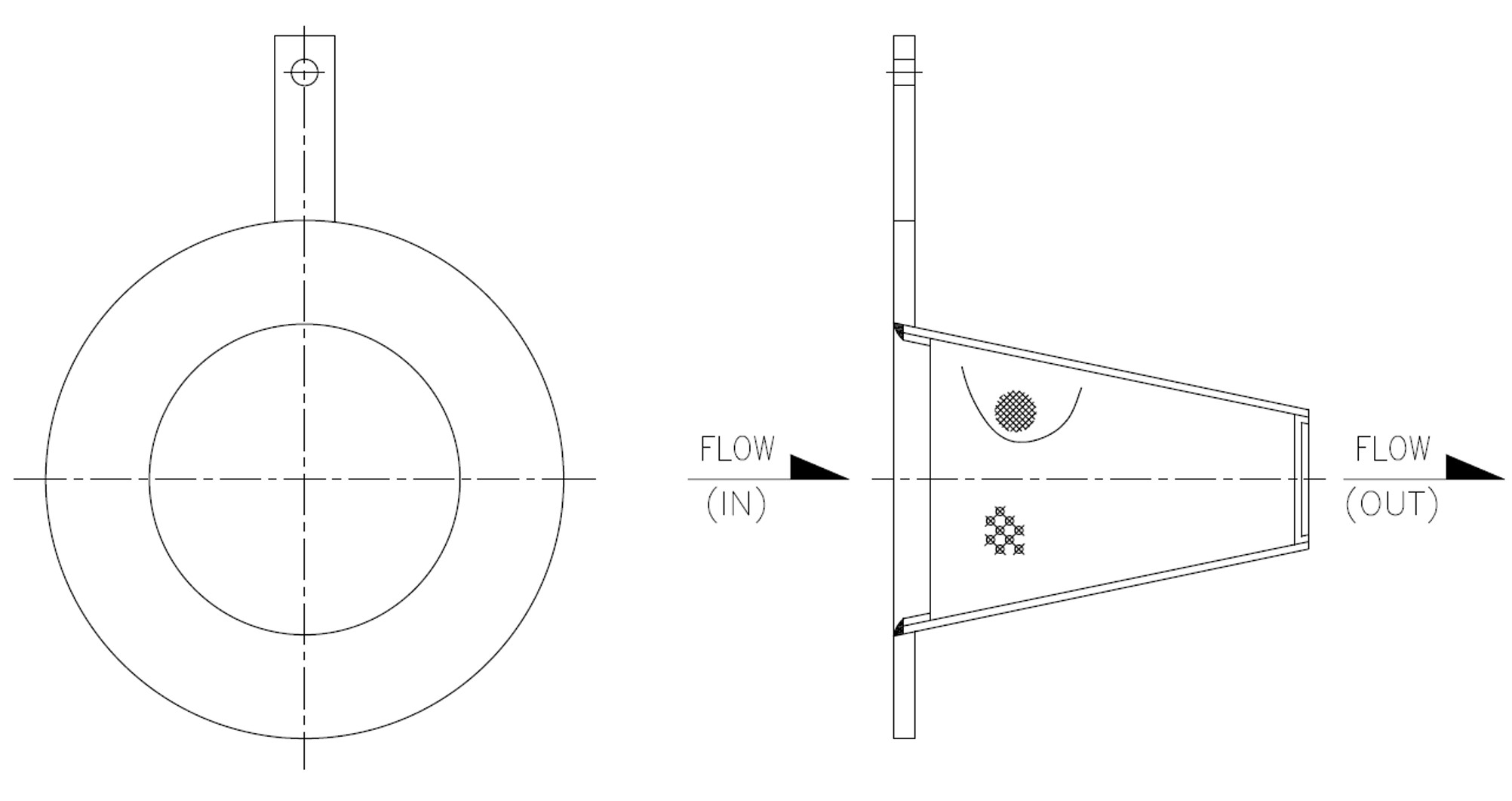

C002 Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 1/2” and above

                     ※ For dimension details, please contact MSNT.
