Duplex type is that 2 strainers are arranged in a line.

It is installed when fluid is acid or poisonous so operation cannot be stopped.

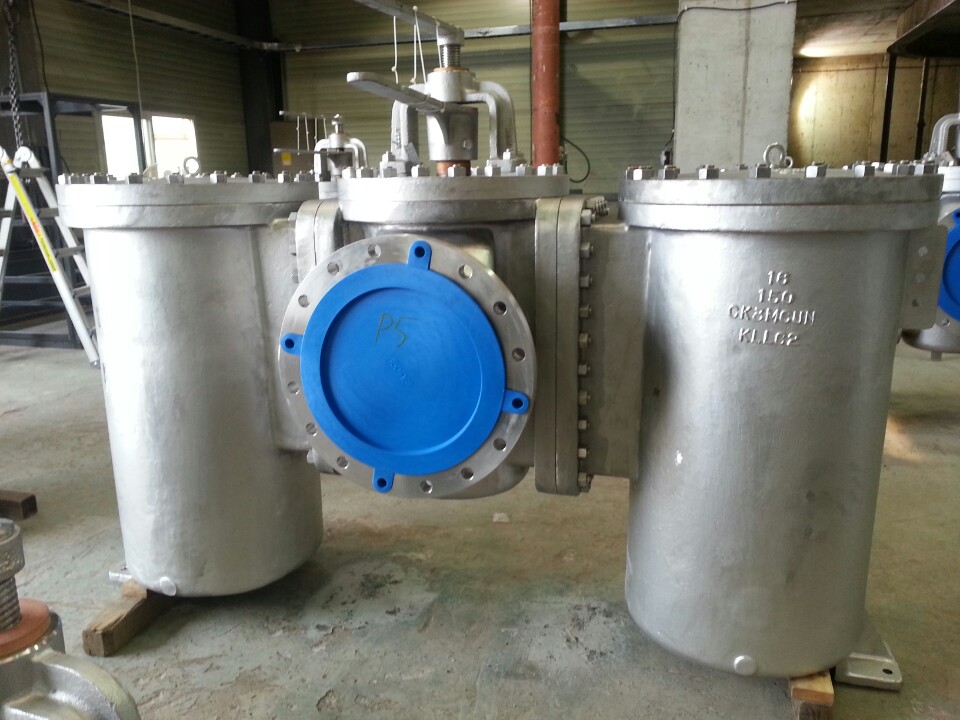

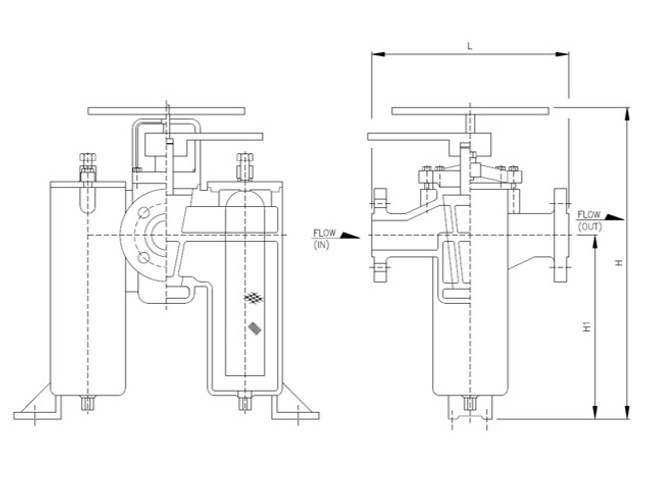

D-001 (D-Casting)  Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



End Connection : Flange Type

                             Butt Weld Type



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 1/2″ ∼ 24”

              ※ For dimension details, please contact MSNT.

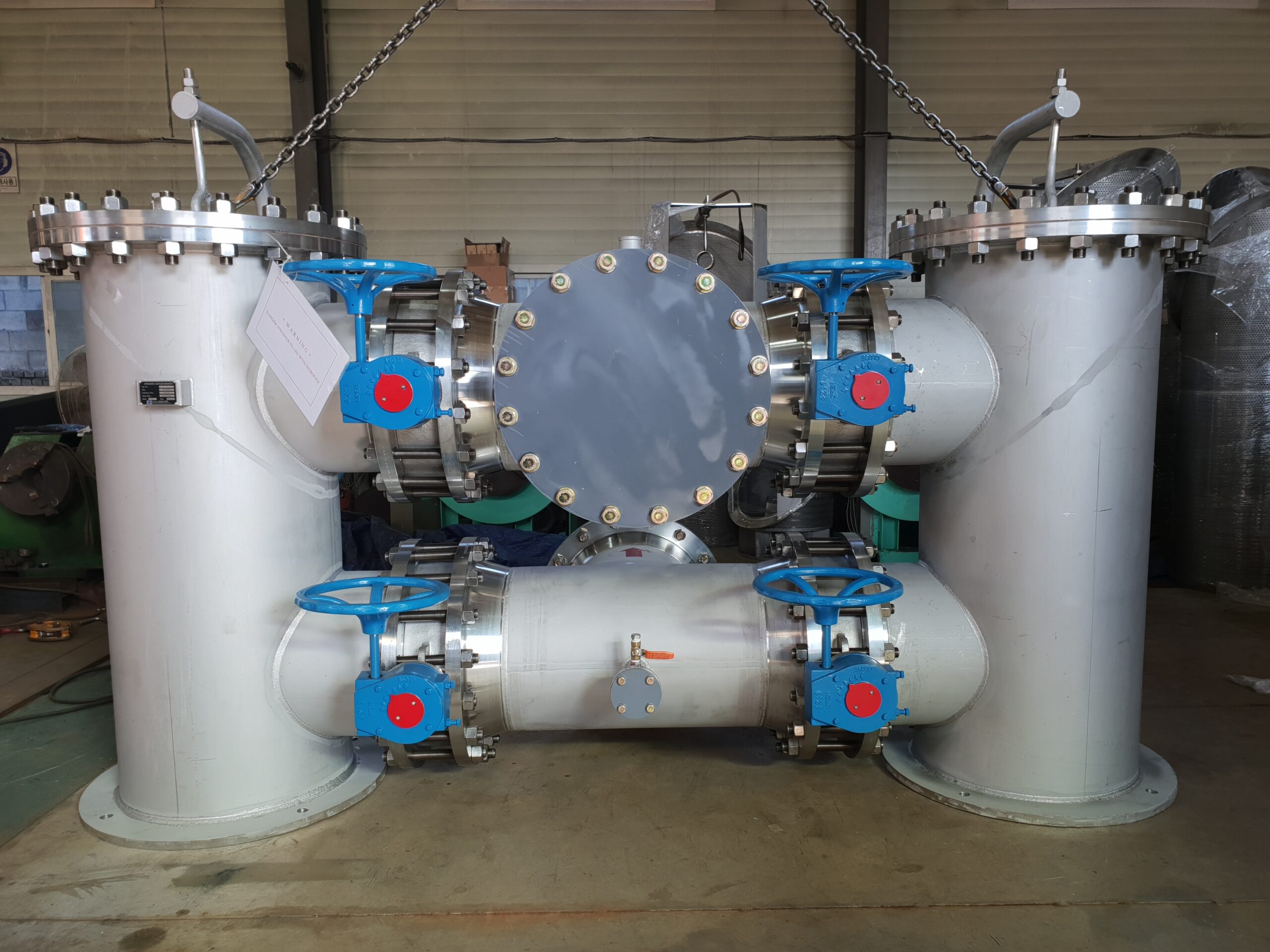

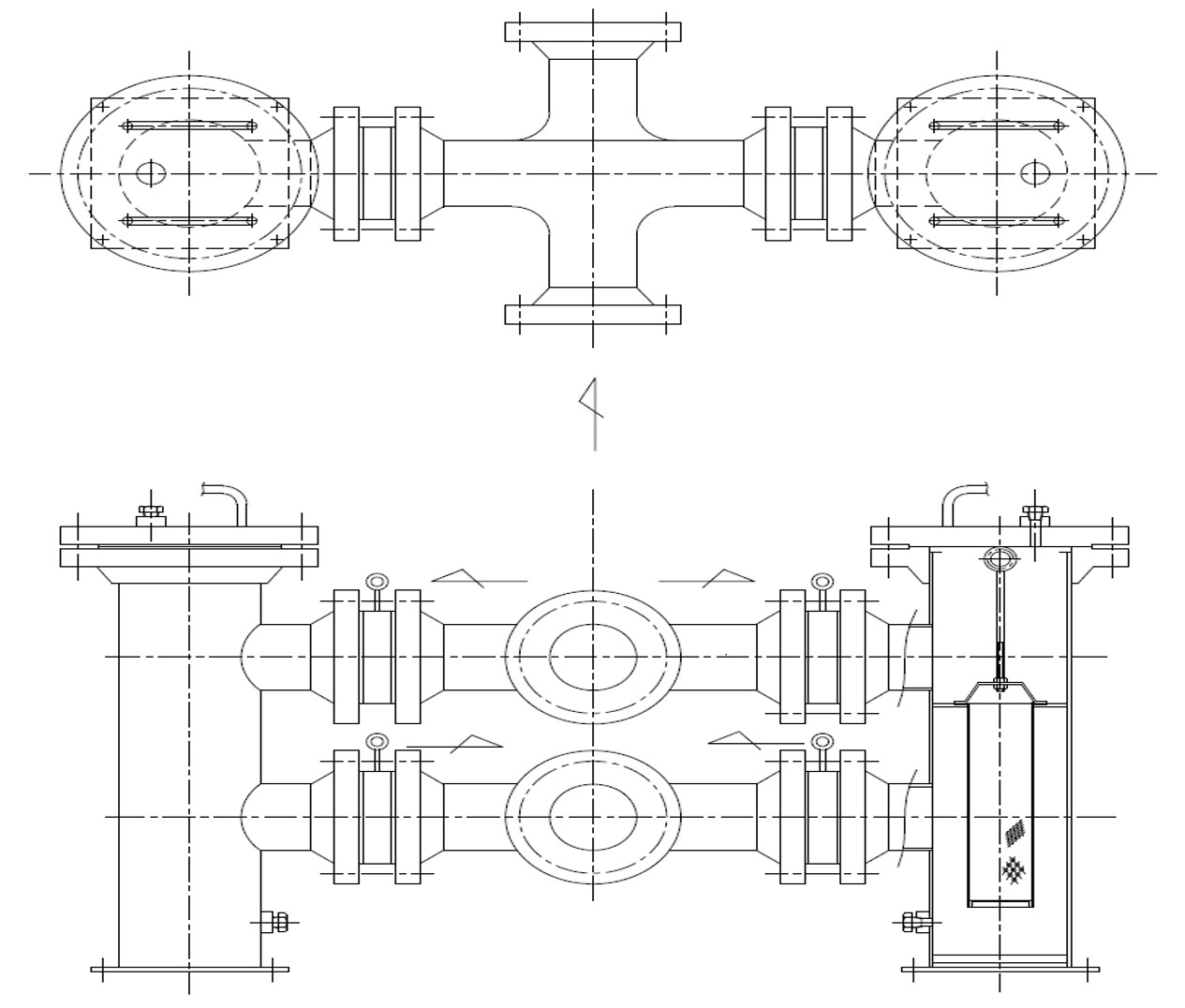

D-002 (D-Fabrication)  Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



End Connection : Flange Type

                             Butt Weld Type



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 1/2” and above

              ※ For dimension details, please contact MSNT.
