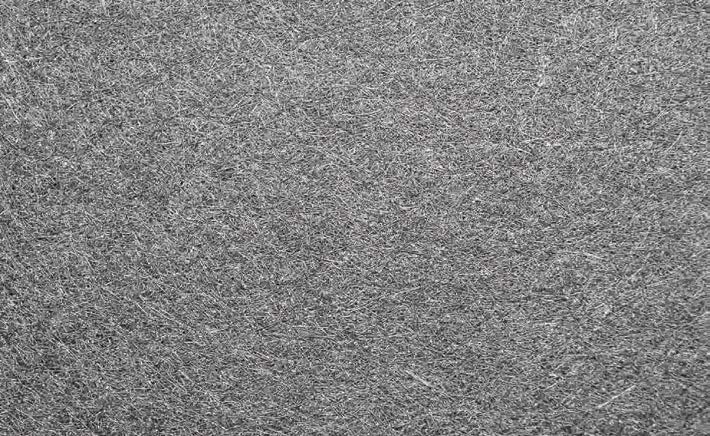

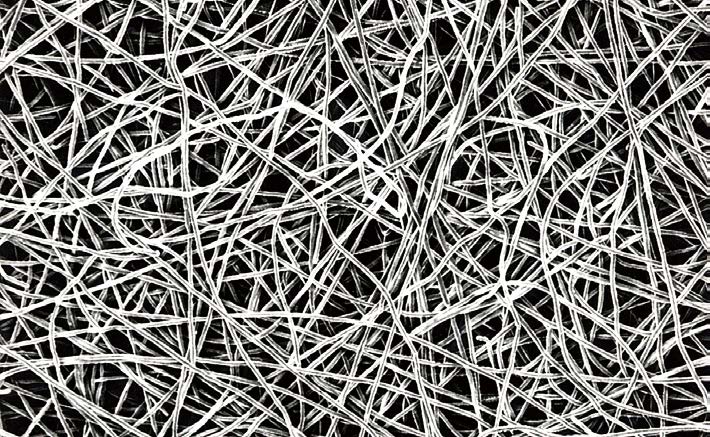

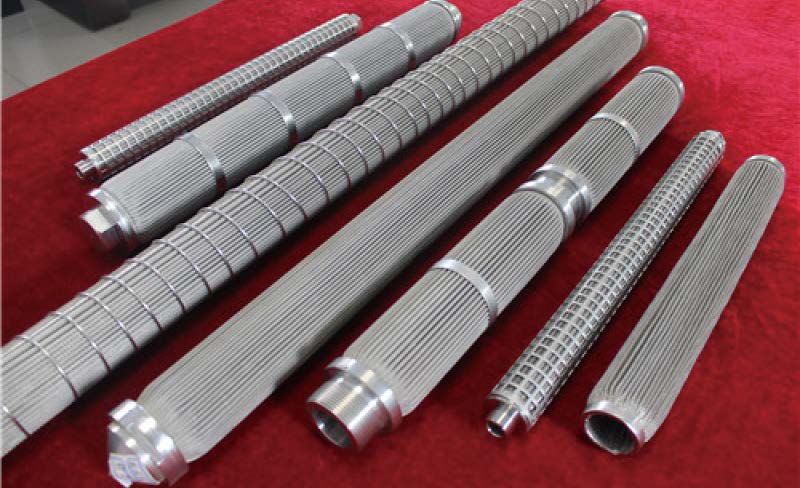

Sintered Metal Fiber type
Dimension OD (ID) X L
2-1/2” (1”) or As Requested
x 10”L / 20”L / 30”L / 40”L
Surface Area
Cylindrical : 0.05 m2 / 10”L
Pleated : 0.17 m2 / 10”L
Flow Rate
(Varies according to micron rating)
8 gpm/ft2 @ 0.5psid
Flow Direction
Out to In flow
Porosity
App. 60% ~ 85%
Micron Rating
Liquid : 0.5㎛ ~ 140㎛ (Nor.)
Gaseous : 0.1㎛ ~ 200㎛ (Nor.)
Filtration Efficiency
Liquid : 98% ~ 99.98% (Max. 3㎛ Abs.)
Gaseous : 98% ~ 99.98% (Max. 1㎛ Abs.)
Change-Out dP
2.4 bar
Material
316L SS, Hastelloy
Contaminant Capacity
2.2gms/ft2@0.5psid
Application
• Chemical / Petrochemical
Corrosives, Ketones, Esters, Cryogenic Fluids, Ethylene
Glycol, Catalyst Recovery, etc.
• Refinery
FCCU Slurry Oil
• Pharmaceutical
De-Colorization, Catalyst Recovery
• Food / Beverage
Process Steam Filtration, Catalyst Recovery, Polishing of
Syrups, Liquors, Catalyst Removal from Flavor Ingredients, A/C Removal, etc.

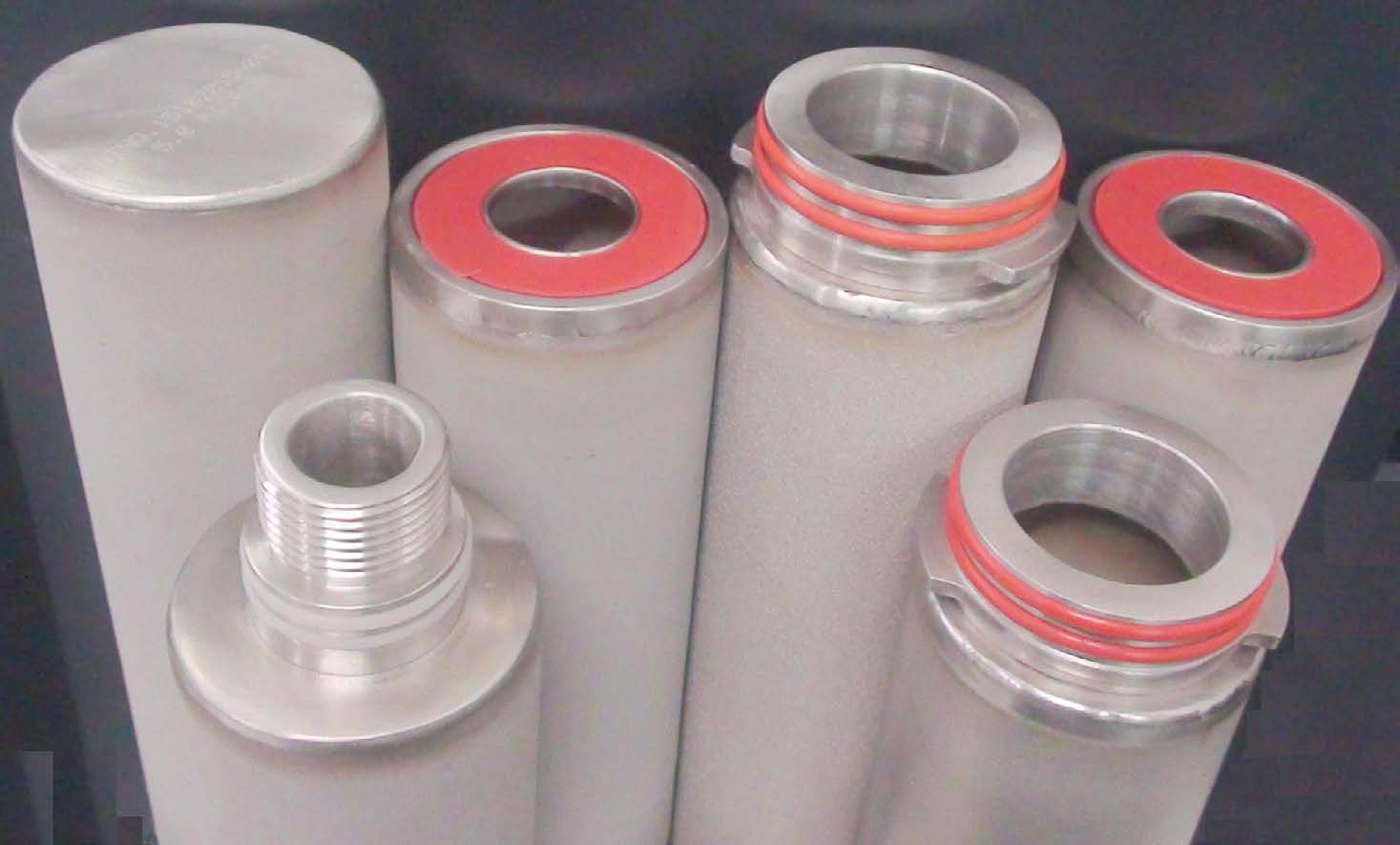

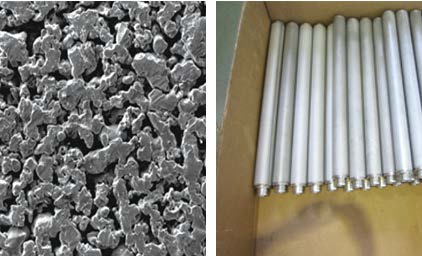

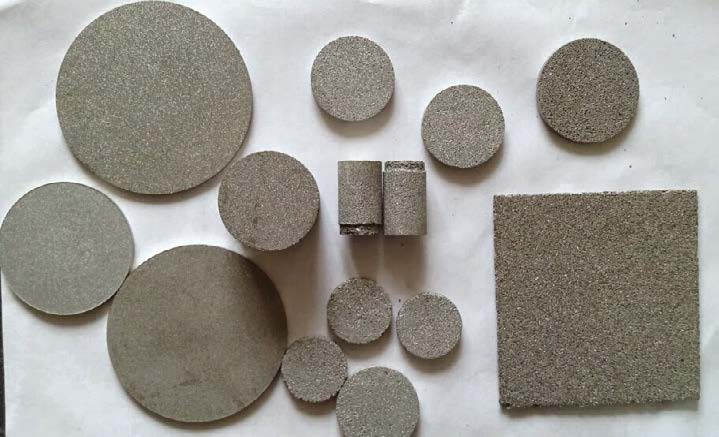

Sintered Powder type
Dimension OD (ID) X L
2-1/2” (1”) or As Requested
x 10”L / 20”L / 30”L / 40”L
Surface Area
0.05 m2/10”L
Flow Rate
Varies according to micron rating
2 gpm/ft2 @ 0.5psid
Flow Direction
Out to In flow
Porosity
App. 35% ~ 65%
Micron Rating
Liquid : 0.2㎛ ~ 100㎛ (Nor.)
Gaseous : 0.01㎛ ~ 30㎛ (Nor.)
Filtration Efficiency
Liquid : 98 ~ 99.98% (Max. 2㎛ Abs.)
Gaseous : 98% ~ 99.98% (Max. 0.1㎛ Abs.)
Change-Out dP
App. 3.5 bar@230 °C
Material
304L SS, 316LSS, Inconel 600, Monel 400, Hastelloy, C276, etc.
Contaminant Capacity
2.7gms/ft2@0.5psid
Application
• Chemical / Petrochemical
CO2, O2, NI, Corrosives, Ketones, Esters, Amines, Ethylene
Glycol, Catalyst Recovery, etc.
• Refinery
FCCU Slurry Oil
• Electronics
Oxide Slurries for Magnetic Tapes, Ink for High-Speed
Printers
• Power Generation
Condensate Polishing, Porous Metal Septa for Powered
Resin Filter / Demineralizer
• Food / Beverage
Oxygen Stripping, Aeration, Carbonation, Hydrogenation,
Clarification, Flotation, etc.

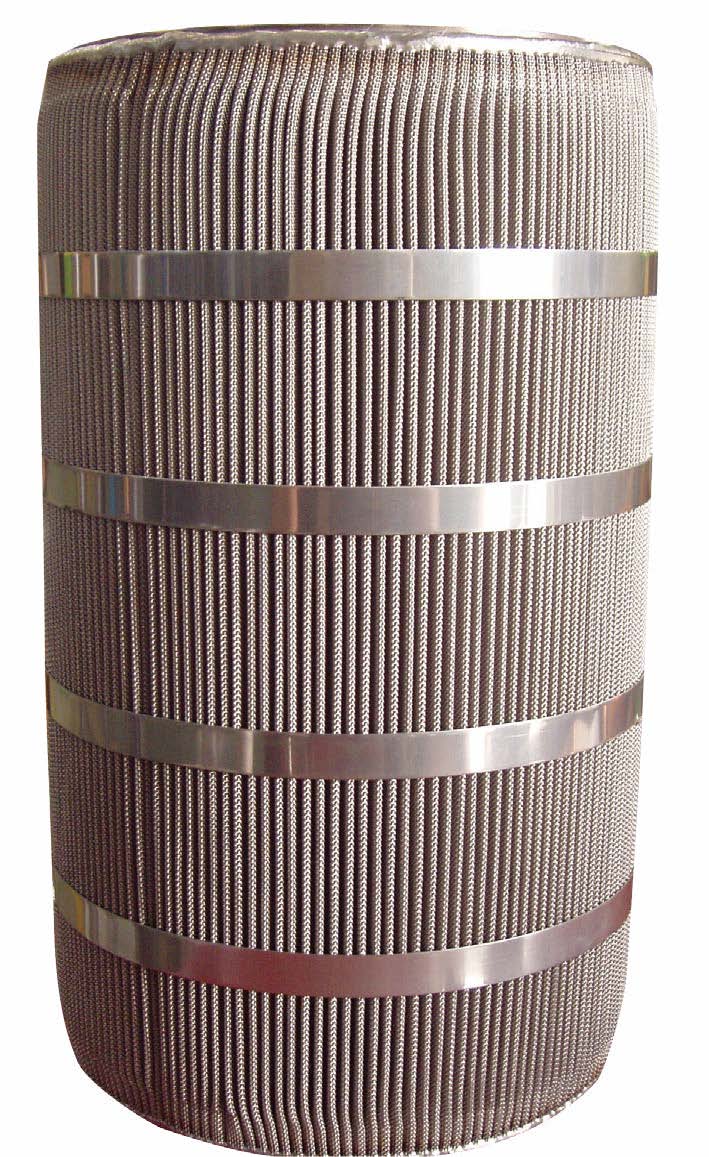

Sintered Multi – Layer type
Dimension OD (ID) X L
2-1/2” (1”) or As Requested
x 10”L / 20”L / 30”L / 40”L
Surface Area
Cylindrical : 0.05 m2 / 10”L
Pleated : 0.17 m2 / 10”L
Flow Rate
2 gpm/ft2 @ 0.5psid
Flow Direction
Out to In flow
Porosity
App. 35%
Micron Rating
Liquid : 2㎛ ~ 140㎛ (Nor.)
Gaseous : 0.5㎛ ~ 200㎛ (Nor.)
Filtration Efficiency
Liquid : 98% ~ 99.98% (Max. 10㎛ Abs.)
Gaseous : 98% ~ 99.98% (Max. 1㎛ Abs.)
Change-Out dP
2.4 bar
Material
316L SS, Hastelloy
Contaminant Capacity
2.7gms/ft2@0.5psid
Application
• Chemical / Petrochemical
Corrosives, Ketones, Esters, Cryogenic Fluids, Ethylene Glycol, Catalyst Recovery, etc.
• Refinery
FCCU Slurry Oil
• Pharmaceutical
De-Colorization, Catalyst Recovery
• Food / Beverage
Process Steam Filtration, Catalyst Recovery, Polishing of
Syrups, Liquors, Catalyst Removal from Flavor Ingredients, A/C Removal, etc.
Wire Mesh type
Dimension OD (ID) X L
2-1/2” (1”) or As Requested
x 10”L / 20”L / 30”L / 40”L
Surface Area
Cylindrical : 0.05 m2 / 10”L
Pleated : 0.17 m2 / 10”L
Flow Direction
Out to In flow
Micron Rating
Liquid : 5㎛ ~ 250㎛ (Nor.)
Gaseous : 5㎛ (Nor.)
Filtration Efficiency
Liquid : 95% ~ 99.98% (Max. 12㎛ Abs.)
Gaseous : 95% ~ 99.98% (Max. 10㎛ Abs.)
Change-Out dP
2.4 bar
Material
304SS, 304L SS, 316L SS
Application
• Chemical / Petrochemical
Corrosives, Ketones, Esters, Cryogenic Fluids, Ethylene Glycol, Catalyst Recovery, etc.
• Refinery
• Pharmaceutical
De-Colorization, Catalyst Recovery
• Food / Beverage
