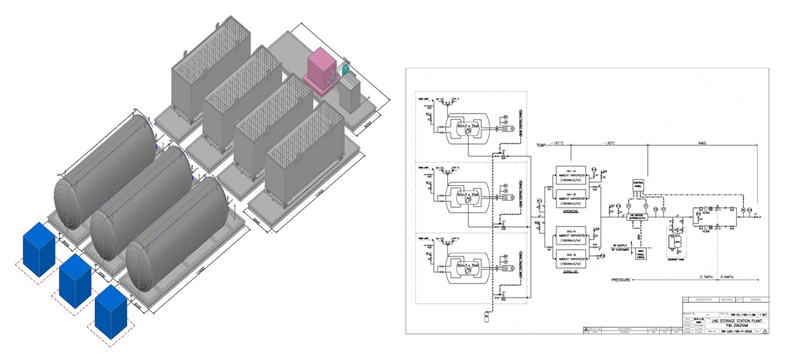

THE SATELLITE LNG SUPPLYING SYSTEM
MSNT, an industry leader in the engineering and design of a diversified line of a cryogenic LNG supplying system – skid type which is installed all units on the base-frame. Followings are significant features ;
◆ The Best Quality
◆ Easy of Operation
◆ Compact Design
◆ Package System
◆ Budget saving system
◆ Capable of reducing storage boil-off losses
◆ Safe, Environment friendly system
※ Available for either portable or Stationary applications for a wide range of capacities.

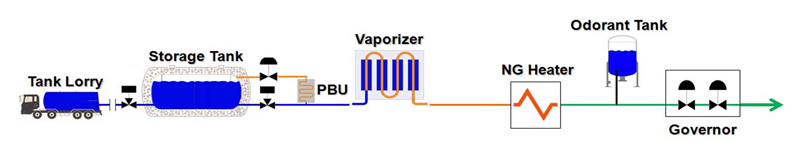

- Tank Lorry : LNG Transportation / 2. Storage Tank / 3. Pressure Build-up Unit (PBU) : Pressure Control in Storage Tank
- Vaporizer : LNG Vaporizing 5. NG Heater : Heat up NG Temp 6. Odorant Tank 7. Governor and Metering

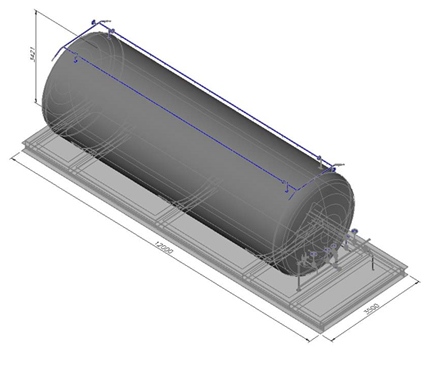

CROYGENIC TANK
● Cryogenic Tank Capacity
Skid type : 20,30,40,50,60 m3
Bigger size – available as requested
● Design Code : ASME and CE
● TYPE : Vertical or Horizontal
● Design Temp. : -196℃ ~ +40℃
● Evaporation Rate : 0.22%/day(0.1 torr)
Option – NER 0.12% & O.15%
●Others : Available as requested

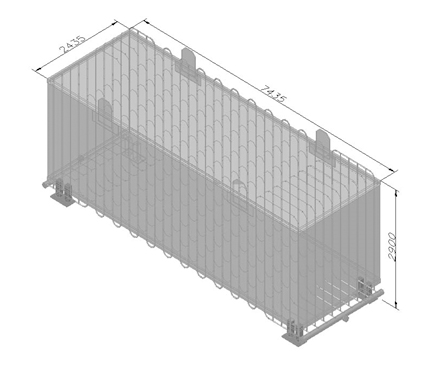

VAPORIZER
● CAPACITY : Up to 4,000 Nm3/hr
Bigger size – available as requested
● Design Pressure (Standard) : 1.0-2.0MPa
According to Tank & Operating Pressure.
● Design Temp. : -196℃ ~ +40℃
●Others : Available as requested

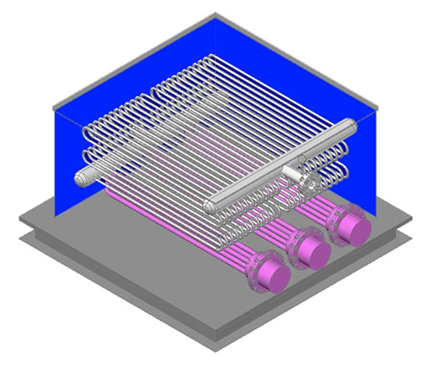

NG HEATER
● CAPACITY : Up to 5,000 Nm3/hr
● Design Pressure (Standard) : 1.0MPa
● Operating Pressure (Standard) : 0.5MPa
● Design Temp. : -50℃ ~ +60℃
● Material : SUS304
●TYPE : Electric & Gas Heater available
●Others : Available as requested

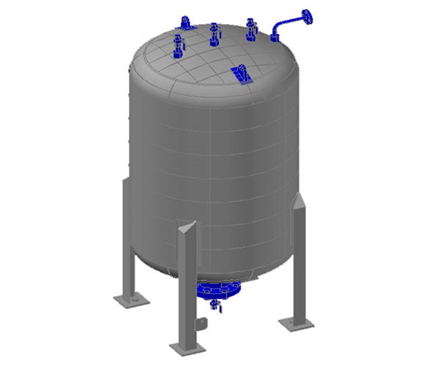

ODORANT STORAGE TANK
● CAPACITY : Up to 850 Liter
● Design Pressure (Standard) : 1.0MPa
● Operating Pressure (Standard) : 0.5MPa
● TYPE : Vertical (Standard)
● Material : SUS304
● Design Temp. : -50℃ ~ +60℃
●Others : Available as requested

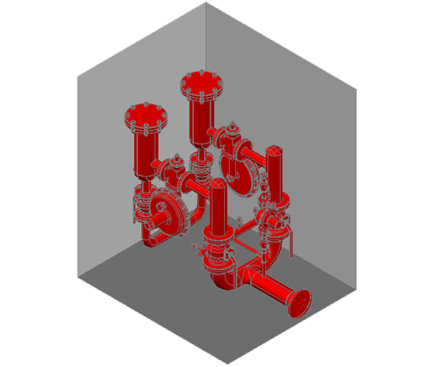

GOVERNOR STATION
● Rgeulator : Worker and Monitor – Double
● Capacity : According to Syatem design
● Inlet Pressure Range : 4-5 bar
● Outlet Pressure Range : 0.4-2 bar
● Design Temp. : -20℃ ~ +60℃
● Material : KS D 3562, 3631
●Others : Available as requested

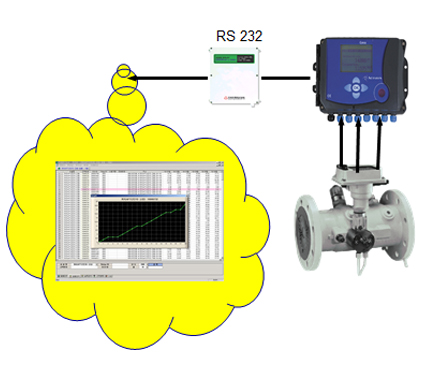

METERING SYSTEM
● Gas Meters : Turbine or Rotary Type
● Gas Converter : PTZ V/C or F/C
● Tank Monitoring System included
● Metering – Monitor System
● Data Base : Hourly, Weekly, Monthly Gas
Consumption / Billing System – Option.
●Others : Available as requested
