The structure is same as Y type but it has T shape.

It has three different types, and the types should be decided depending on the fluid direction (Angle or Straight).





The straight type, for example, needs cleaning often and it is usually installed for process

liquid and oil line for cleaning quickly



And our T003 Series, straight flow type, can be installed where the installation space is

limited for Basket Type Strainer.

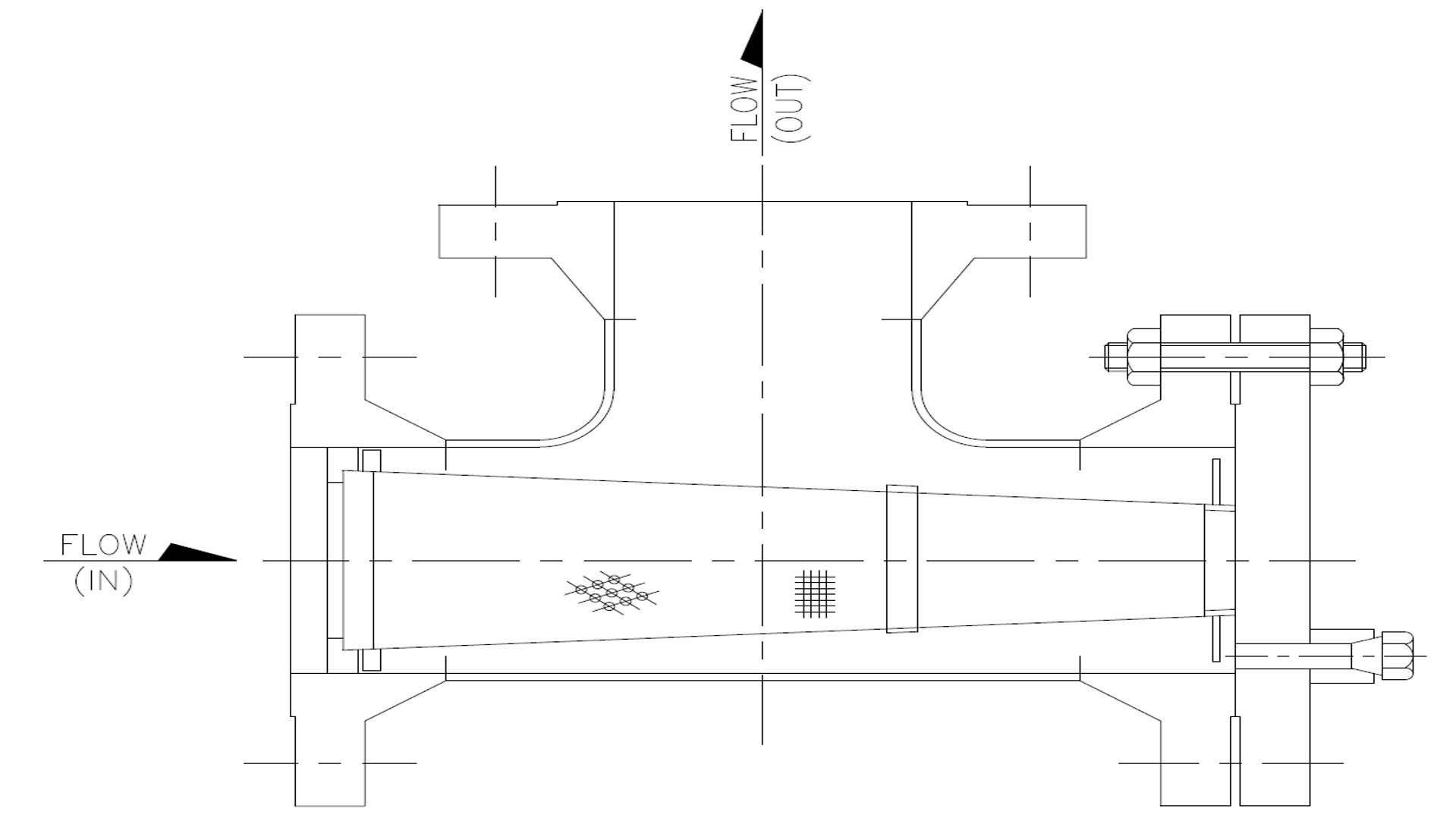

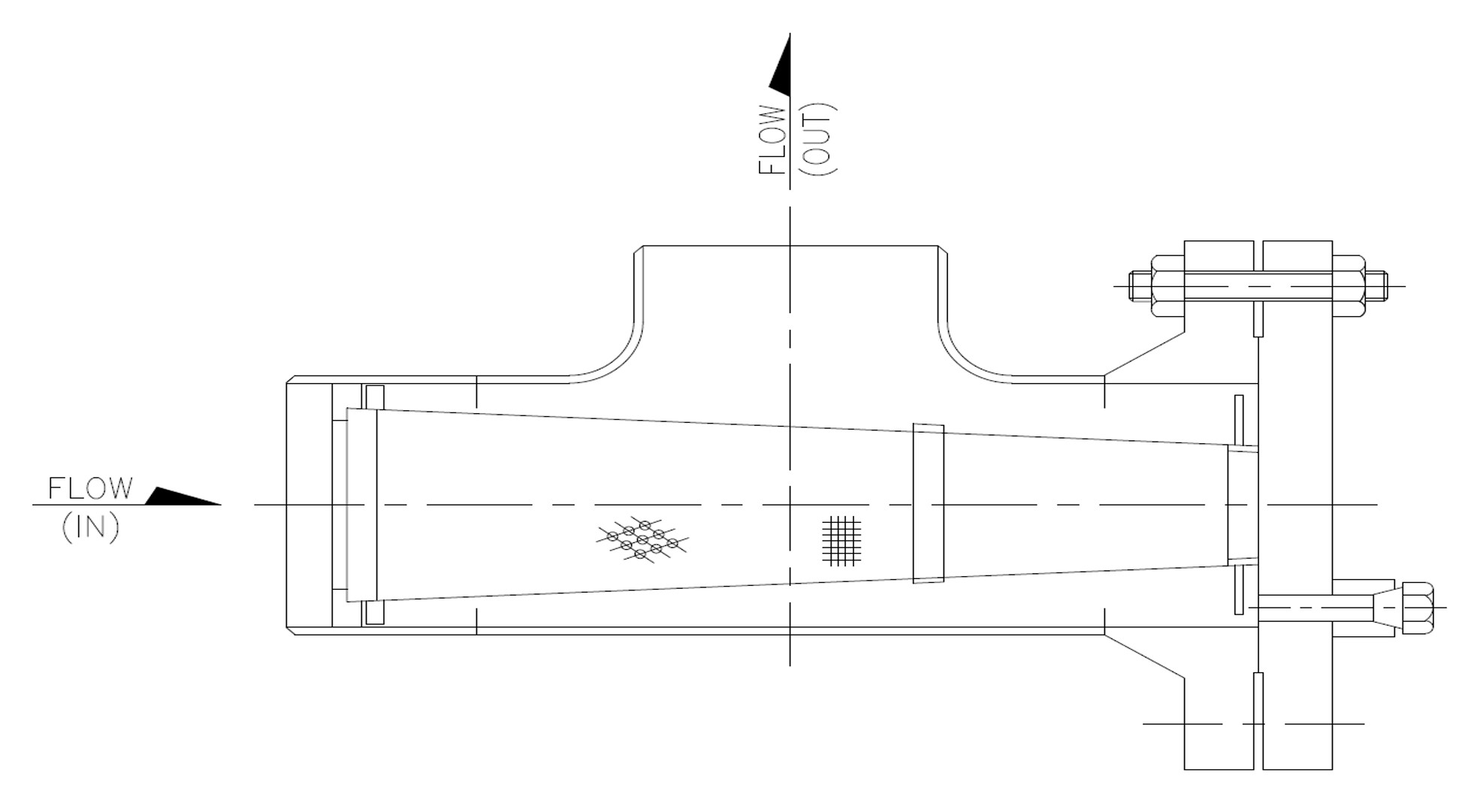

T-001 & T-001F  Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



End Connection : Flange Type

                             Butt Weld Type



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 2” and above

              ※ For dimension details, please contact MSNT.









T-002 & T-002F  Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



End Connection : Flange Type

                             Butt Weld Type



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 2” and above

              ※ For dimension details, please contact MSNT.

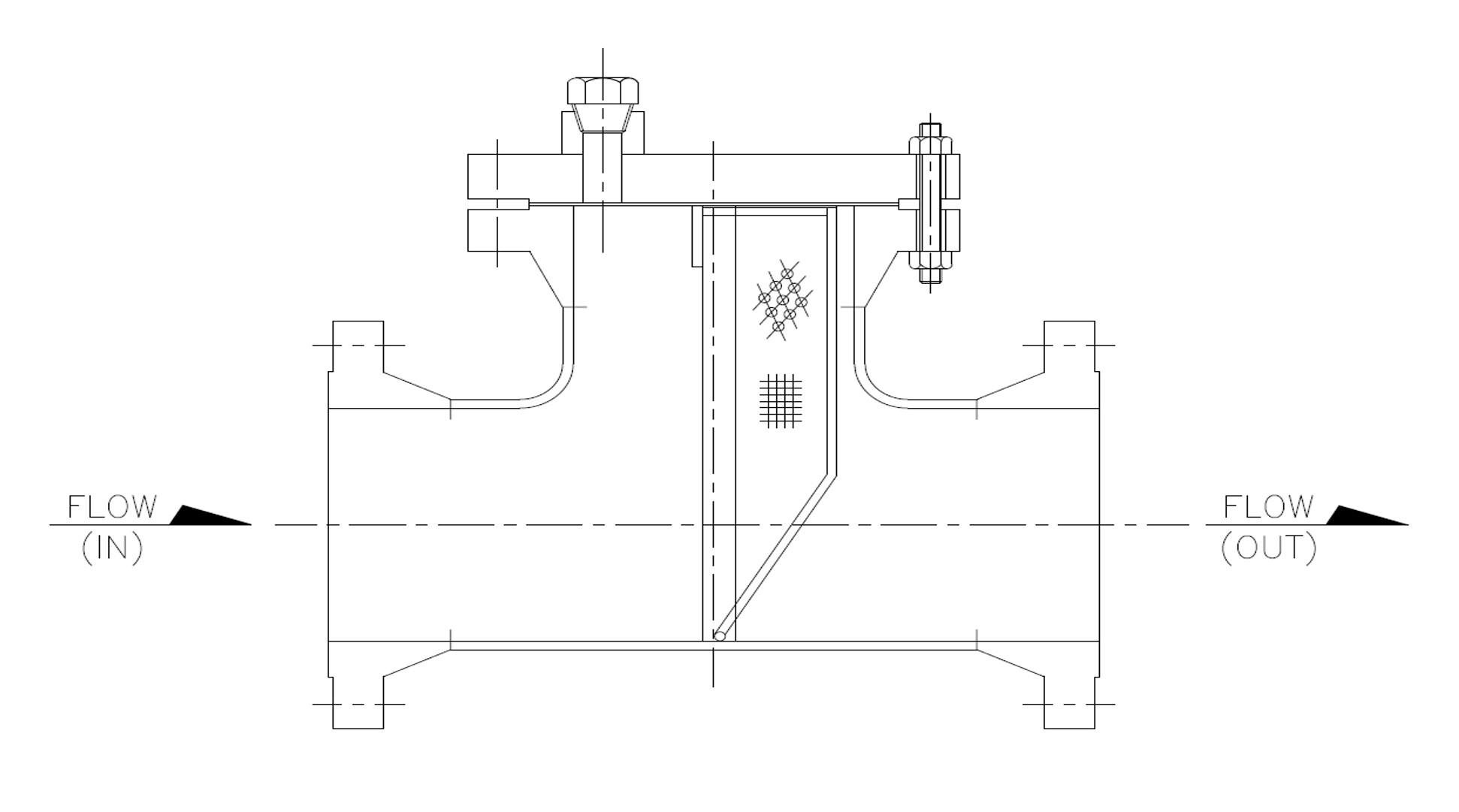

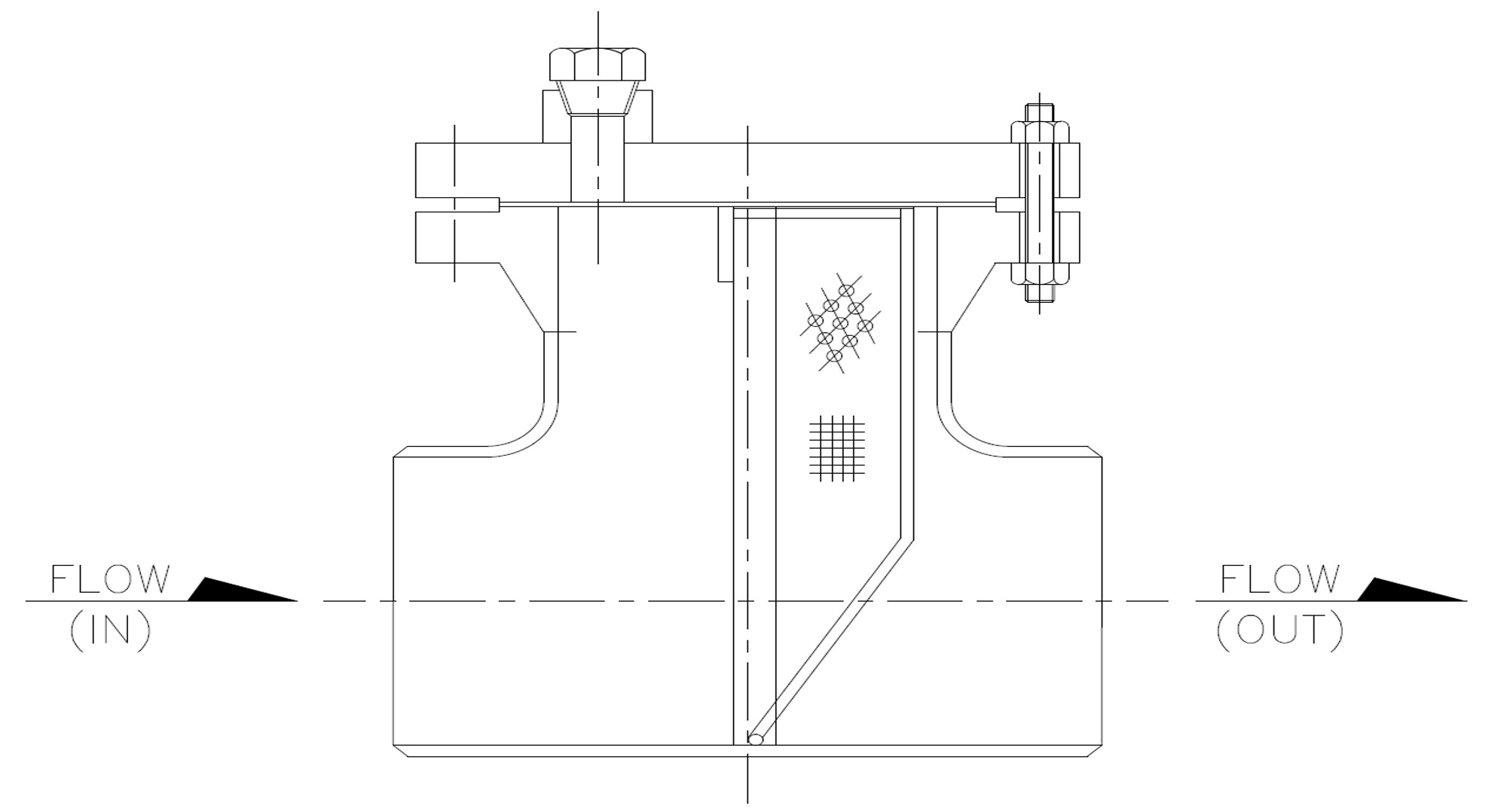

T-003 & T-003F  Type Specification



Applicable Code : ASME, KS, JIS, JPI, API, ISO, MSS



Material : Carbon Steel, Stainless Steel, Alloy Steel, Monel,

                Aluminum, Copper Alloy, Chrome Steel, etc.



End Connection : Flange Type

                             Butt Weld Type



Flange Rating : 150#, 300#, 600#, 900#, 1500#, 2500#



Size Range : 2” and above

              ※ For dimension details, please contact MSNT.
